精心为您推荐【ZSRL气动L型三通球阀ZSRT气动T型三通球阀】是上海乔邑阀门制造有限公司生产销售的主要产品之一，公司常年备有大量库存现货以出厂价直销，我们一直努力为客户提供全套工业阀门的解决方案，让客户购买到物美价廉的产品，欢迎咨询选购！
产品简介：

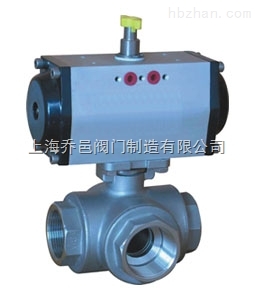

ZSRL气动L型三通球阀ZSRT气动T型三通球阀是由气动执行机构和三通阀组成，是一种旋转类切断调节阀门，具有关闭严密，结构紧凑，重量轻，维修方便等优点。ZSRL(T)气动三通球阀广泛用于气体、液体、蒸汽、油品等腐蚀性介质的管道自动化控制中。
主要外形尺寸
|
公称压力或压力级 |
公称通径 |
尺寸（mm） |
|||||||
|
mm |
in |
L |
L1 |
D |
D1 |
D2 |
b |
z-Φd |
|
|
|
15 |
|
130 |
65 |
95 |
65 |
45 |
14 |
4-14 |
|
20 |
|
150 |
75 |
105 |
75 |
55/58 |
14/16 |
4-14 |
|
|
25 |
|
160 |
80 |
115 |
85 |
65/68 |
14/16 |
4-14 |
|
|
32 |
|
180 |
90 |
135/140 |
100 |
78 |
16 |
4-18 |
|
|
PN1.6MPa |
40 |
|
200 |
100 |
145/150 |
110 |
85/88 |
16 |
4-18 |
|
50 |
|
230 |
115 |
160/165 |
125 |
100/102 |
16/18 |
4-18 |
|
|
65 |
|
290 |
145 |
180/185 |
145 |
120/122 |
18 |
4-18 |
|
|
80 |
|
310 |
155 |
195/200 |
160 |
135/138 |
20 |
4-18 |
|
|
100 |
|
350 |
175 |
215/220 |
180 |
155/158 |
20 |
4-18 |
|
|
125 |
|
400 |
200 |
245/250 |
210 |
185/188 |
22 |
4-18 |
|
|
150 |
|
480 |
240 |
280/285 |
240 |
210/212 |
24/22 |
8-23/8-22 |
|
|
|
15 |
|
130 |
65 |
95 |
65 |
45 |
16 |
4-14 |
|
20 |
|
150 |
75 |
105 |
75 |
55/58 |
16 |
4-14 |
|
|
25 |
|
160 |
80 |
115 |
85 |
65/68 |
16 |
4-14 |
|
|
32 |
|
180 |
90 |
135/140 |
100 |
78 |
18 |
4-18 |
|
|
PN2.5MPa
|
40 |
|
200 |
100 |
145/150 |
110 |
85/88 |
18 |
4-18 |
|
50 |
|
230 |
115 |
160/165 |
125 |
100/102 |
20 |
4-18 |
|
|
65 |
|
290 |
145 |
180/185 |
145 |
120/122 |
22 |
8-18 |
|
|
80 |
|
310 |
155 |
195/200 |
160 |
135/138 |
22/24 |
8-18 |
|
|
100 |
|
350 |
175 |
230/235 |
190 |
160/162 |
24 |
8-23/8-22 |
|
|
125 |
|
400 |
200 |
270 |
220 |
188 |
28/26 |
8-25/8-26 |
|
|
150 |
|
480 |
240 |
300 |
250 |
218 |
30/28 |
8-25/8-26 |
|
|
PN4.0MPa
|
15 |
|
130 |
65 |
95 |
65 |
45 |
16 |
4-14 |
|
20 |
|
150 |
75 |
105 |
75 |
55/58 |
16 |
4-14 |
|
|
25 |
|
160 |
80 |
115 |
85 |
65/68 |
16 |
4-14 |
|
|
32 |
|
180 |
90 |
135/140 |
100 |
78 |
18 |
4-18 |
|
|
40 |
|
200 |
100 |
145/150 |
110 |
85/88 |
18 |
4-18 |
|
|
50 |
|
230 |
115 |
160/165 |
125 |
100/102 |
20 |
4-18 |
|
|
65 |
|
290 |
145 |
180/185 |
145 |
120/122 |
22 |
8-18 |
|
|
80 |
|
310 |
155 |
195/200 |
160 |
135/138 |
22 |
8-18 |
|
|
100 |
|
350 |
175 |
230/235 |
190 |
160/162 |
24 |
8-23/8-22 |
|
|
125 |
|
400 |
200 |
270 |
220 |
188 |
28 |
8-25/8-26 |
|
|
150 |
|
480 |
240 |
300 |
250 |
218 |
30 |
8-25/8-26 |
|
|
|
15 |
1/2 |
130 |
65 |
89 |
60.5 |
35 |
- |
4-15 |
|
20 |
3/4 |
150 |
75 |
98 |
70 |
43 |
- |
4-15 |
|
|
25 |
1 |
160 |
80 |
108/110 |
79.5 |
51 |
11.5 |
4-15/4-16 |
|
|
32 |
11/4 |
180 |
90 |
117/120 |
89 |
64 |
13.0 |
4-15/4-16 |
|
|
40 |
11/2 |
200 |
100 |
127/130 |
98.5 |
73 |
14.5 |
4-15/4-16 |
|
|
50 |
2 |
230 |
115 |
152/150 |
120.5 |
92 |
16.0 |
4-19/4-20 |
|
|
65 |
21/2 |
290 |
145 |
178/180 |
139.5 |
105 |
17.5 |
4-19/4-20 |
|
|
80 |
3 |
310 |
155 |
190 |
152.5 |
127 |
19.5 |
4-19/4-20 |
|
|
100 |
4 |
350 |
175 |
229/230 |
190.5 |
157 |
24.0 |
8-19/4-20 |
|
|
125 |
5 |
400 |
200 |
254/255 |
216.0 |
186 |
24.0 |
8-22 |
|
|
150 |
6 |
480 |
240 |
279/280 |
241.5 |
216 |
25.5 |
8-22 |
|
|
JIS10K |
15 |
|
130 |
65 |
95 |
70 |
52 |
12 |
4-15 |
|
20 |
|
150 |
75 |
100 |
75 |
58 |
14 |
4-15 |
|
|
25 |
|
160 |
80 |
125 |
90 |
70 |
14 |
4-19 |
|
|
32 |
|
180 |
90 |
135 |
100 |
80 |
16 |
4-19 |
|
|
40 |
|
200 |
100 |
140 |
105 |
85 |
16 |
4-19 |
|
|
50 |
|
230 |
115 |
155 |
120 |
100 |
16 |
4-19 |
|
|
65 |
|
290 |
145 |
175 |
140 |
120 |
18 |
4-19 |
|
|
80 |
|
310 |
155 |
185 |
150 |
130 |
18 |
8-19 |
|
|
100 |
|
350 |
175 |
210 |
175 |
155 |
18 |
8-19 |
|
|
125 |
|
400 |
200 |
250 |
210 |
185 |
20 |
8-23 |
|
|
150 |
|
480 |
240 |
280 |
240 |
215 |
22 |
8-23 |
|
注：1、表中以分数表示者，分子为JB/T74~90系列2尺寸（等同于原机标JB74~90~59的尺寸），分母JB/T74~90系列
1、GB9112~9131（PN1.6、2.5、4.0Mpa）及HGJ44~76尺寸。
2、表中以分数表示者，分子为ANSIB16.5尺寸，分母为GB9112~9131、SH3406尺寸。
上海乔邑阀门为您提供优质的【ZSRL气动L型三通球阀ZSRT气动T型三通球阀】产品和完善的售后服务，如需订购本产品，请提供口径、压力、材质等详细参数！本文中所有的文字、图片、数据仅供参考，若需要了解更多的性能参数、结构尺寸、价格等详情，请联系我们！
